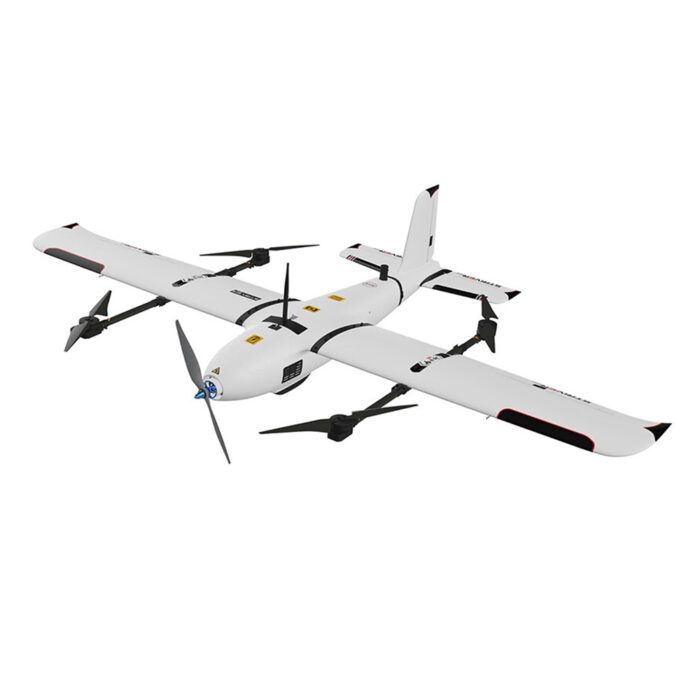

The Striver Mini VTOL represents a compact Vertical Takeoff and Landing (VTOL) aircraft designed for various applications, including surveillance, reconnaissance, and small cargo transport. This unmanned aerial vehicle (UAV) is known for its maneuverability, versatility, and adaptability to diverse environments.
Key features of the Stiver Mini VTOL include:
- Vertical Takeoff and Landing Capability: Its ability to take off and land vertically eliminates the need for runways, making it suitable for confined spaces or areas with limited accessibility.
- Compact Design: The Mini VTOL is designed to be compact, allowing for easy transport and deployment, especially in scenarios where space is a constraint.
- Payload Flexibility: It can accommodate different payloads, such as cameras, sensors, or lightweight cargo, depending on the mission requirements.
- Autonomous Capabilities: Equipped with advanced navigation and autonomous flight systems, it can operate with minimal human intervention, enabling pre-programmed missions and real-time adaptability.
- Maneuverability: The aircraft is designed for agility and stability in flight, allowing it to navigate challenging terrains and perform precise maneuvers.
- Long Endurance: While specific flight times may vary based on payload and mission requirements, the Mini VTOL is engineered for extended flight durations to cover larger areas or conduct prolonged surveillance operations.
- Applications: Its versatility makes it suitable for a range of applications, including military reconnaissance, border patrol, emergency response, aerial mapping, and infrastructure inspection.
The Striver Mini VTOL, like many UAVs, represents the ongoing advancements in drone technology aimed at enhancing efficiency and capabilities across various industries. It’s important to check for updates or newer versions as technology in this field evolves rapidly.
Specifications
Material: EPO, EVA, carbon fiber, engineering plastics, etc.
Wingspan: 2100mm
VTOL arm: 744mm
Fuselage height: 156mm (without foot pads)
Fuselage length: 1200mm
Wing area: 59dm2
Disassembly method: tool-less quick disassembly
Load compartment size:180×150×110mm
Transport box size: 1.07m×0.35m×0.48m
Max. payload: 1kg
Max. takeoff weight: 7.5kg
Takeoff and landing mode: VTOL
Maximum takeoff altitude: 3000m
Practical lift altitude: 4500m
Wind resistance: Class 5 (normal operation)
Cruising speed: 18-21m/s
Stall speed: 10m/s
Range performance: 112min/127km (speed 19m/s , load 600g, battery 6S@22000mah, takeoff weight 7.1kg, altitude 500m)
