Discover The Autel EVO Max 4N: The Ultimate Drone For Advanced Aerial Imaging
The Autel EVO Max 4N will improve your aerial photography as well as filmmaking. This high-performance drone combines advanced technology with user-friendly controls to deliver exceptional image quality, extended flight times, and robust durability. Whether you're capturing breathtaking landscapes or conducting detailed inspections, the EVO Max 4N is engineered to meet the needs of both professionals and enthusiasts.
VISIT THIS CATEGORY PAGE TO EXPLORE THE EVO MAX SERIES.
Autel EVO Max 4N Overview
The Autel EVO Max 4N stands out in the world of drones with its impressive specifications and versatile capabilities. Whether you're an aerial photographer, surveyor, or drone hobbyist, this drone offers top-of-the-line features that cater to all your needs.
- 4K Starlight Camera: Equipped with a powerful 4K Starlight Camera, the EVO Max 4N captures incredibly detailed images and videos even in low-light conditions. The camera supports a wide zoom range and offers stunning image quality with a maximum resolution of 7680×4320.
- Wide Camera: Featuring a 1/1.28 CMOS sensor with 50MP resolution, this camera is ideal for capturing expansive landscapes with clarity. It includes advanced autofocus and a wide aperture for exceptional low-light performance.
- Thermal Imaging: The integrated thermal camera provides accurate temperature measurements and high-resolution thermal imaging, making it perfect for search and rescue operations, inspections, and more.
- Long Flight Time: With up to 42 minutes of flight time and a robust build capable of withstanding winds up to 27 mph, the EVO Max 4N ensures you have ample time to complete your missions.
Autel EVO Max 4N Review
In various Autel EVO Max 4N Review, this drone consistently receives high praise for its advanced technology and ease of use. Users appreciate its long flight time, superior image quality, and the versatility of its camera systems. The drone’s intuitive controls and reliable performance make it a favorite among both professionals and enthusiasts.
Autel EVO Max 4N Accessories
For those looking to enhance their drone experience, the Autel EVO Max 4N Accessories are available. These include additional batteries, carrying cases, propeller guards, and more, ensuring you have everything you need for extended flights and safe operation.
No Blind Spots
EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autono- my Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
Anti Jam, Anti Interference
The EVO Max 4N uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS
spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.
Autel EVO Max 4N: Technical Specifications
Here’s a closer look at the technical specifications of the Autel EVO Max 4N:
Aircraft
3.57 pounds (1620 grams, with the gimbal as well as battery)
Max. Takeoff Weight: 4.41 lbs (1999 g)
Dimensions:
Folded: 576660149 mm (incl. propellers)
Folded: 340407148 mm (excl. propellers)
Unfolded: 257136133 mm (excl. propellers)
Diagonal Wheelbase: 464mm
Max Ascent Speed: 8 m/s
Max Descent Speed: 6 m/s
Max Horizontal Speed: 23 m/s (windless near sea level)
Maximum Takeoff Altitude: 13,124 ft (4000m)
Max Flight Time: 42 mins (windless)
Max Hover Time: 38 mins (windless)
Max Wind Resistance: 27 mph
IP Rating: IP43
Max Tilt Angle: 35°
Max Angular Velocity: Pitch: 300°/s; Yaw: 120°/s
Operating Temperature: -20℃ to +50℃
Operating Frequency: 2.4G/5.2G/5.8G/900MHz
GNSS: GPS+Galileo+BeiDou+GLONASS
Image Transmission
Max Transmission Distance: 20km (FCC), 8km (CE)
Gimbal
Mechanical Range: Pitch: -135° to 45°, Roll: -45° to 45°, Yaw: -45° to 45°
Controllable Range: -90° to 30°
Three-axis mechanical gimbal (pitch, roll, as well as pan) for stability
Max. Control Speed (pitch): 200º/s
Angular Vibration Range: <0.005°
Camera Systems
Starlight Camera:
Sensor: Effective Pixels: 2.3M
Lens: Focal length: 35mm
Zoom Range: 1-8x
ISO Range: Auto: ISO100-ISO450000
Max Photo Size: 8000×6000
Max Video Resolution: 7680×4320
Wide Camera:
Sensor: 1/1.28 CMOS, Effective pixels: 50M
Lens: DFOV: 85°
Aperture: f/1.9
ISO Range: Photo: ISO100~ISO12800
Max Video Resolution: 3840×2160
Thermal Camera:
Thermal Imager: Uncooled VOx Microbolometer
Lens: DFOV: 61°
Video Resolution: 640×512
Temperature Measurement Range: -4℉ to 302℉
Laser Range Finder
Measurement Accuracy: ±1m
Measuring Range: 1.2km
General Specifications
Screen: 7.9 inch, 2000nits max. brightness
Battery: Capacity: 8070mAh, Voltage: 14.88V
Platform Capability
EVO Max 4T redefines portability with its powerful platform and all weather design.
42 mins Max. Flight Time | IP43 Weather Rating | 27 mph* Max. Wind Resistance | 13124ft Service Ceiling | 12.4 miles Image Transmission Range
Compatibility With Autel Robotics EVO MAX 4N Gimbal Camera
The Autel EVO Max 4N drone is designed to work seamlessly with the Autel Robotics EVO MAX 4N Gimbal Camera, providing a range of benefits:
- Enhanced Stabilization: The integrated gimbal ensures exceptional stabilization, reducing camera shake and delivering smooth, professional-quality footage even in challenging conditions.
- Precision Control: The gimbal offers precise control over camera angles and movements, allowing for accurate framing and composition of shots, which is crucial for both photography and videography.
- Improved Image Quality: With the gimbal's advanced stabilization technology, you can achieve clearer and more detailed images and videos, enhancing the overall quality of your aerial footage.
- Efficient Operation: The seamless compatibility means that users can easily switch between different camera setups without the need for additional adjustments or modifications, streamlining the filming process.
- Versatile Applications: The combination of the EVO Max 4N drone and the MAX 4N Gimbal Camera is ideal for a variety of applications, including professional filmmaking, aerial surveying, and detailed inspections, thanks to the superior camera stability and image clarity.
- User-Friendly Integration: The drone and gimbal system are designed to work together effortlessly, ensuring that users can focus on capturing high-quality footage without being bogged down by complex setup procedures.
- Robust Performance: The gimbal’s robust build complements the drone’s durability, providing reliable performance in various environmental conditions and during dynamic flight maneuvers.
Hurry Up! Call Our Sales Team Today To Get This Product!
The Autel EVO Max 4N is a powerful and versatile drone that excels in both performance and functionality. With its advanced camera systems, long flight times, and robust design, it is well-suited for a wide range of applications, from professional filmmaking to technical inspections. Its compatibility with the Autel Robotics EVO MAX 4N Gimbal Camera further amplifies its capabilities, making it an ideal choice for those seeking top-tier aerial imaging solutions. Explore the Autel EVO Max 4N and experience the cutting-edge of drone technology.

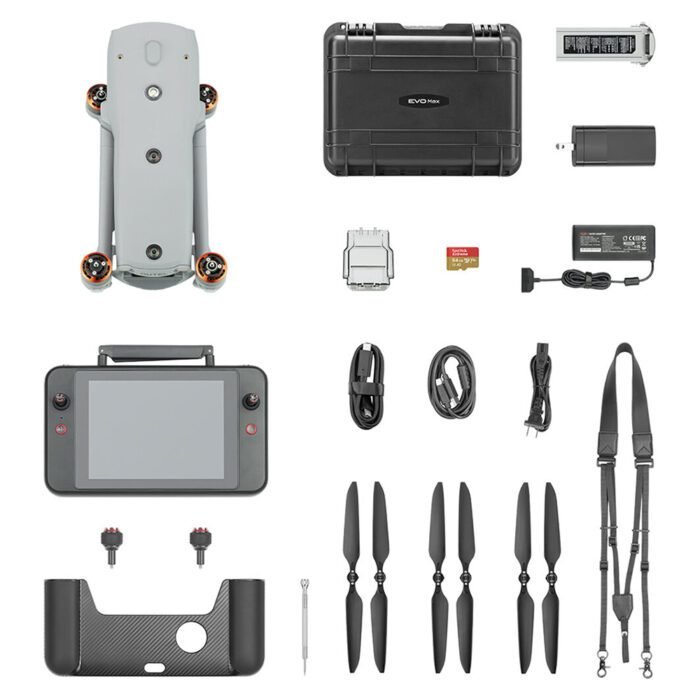

In The Box
