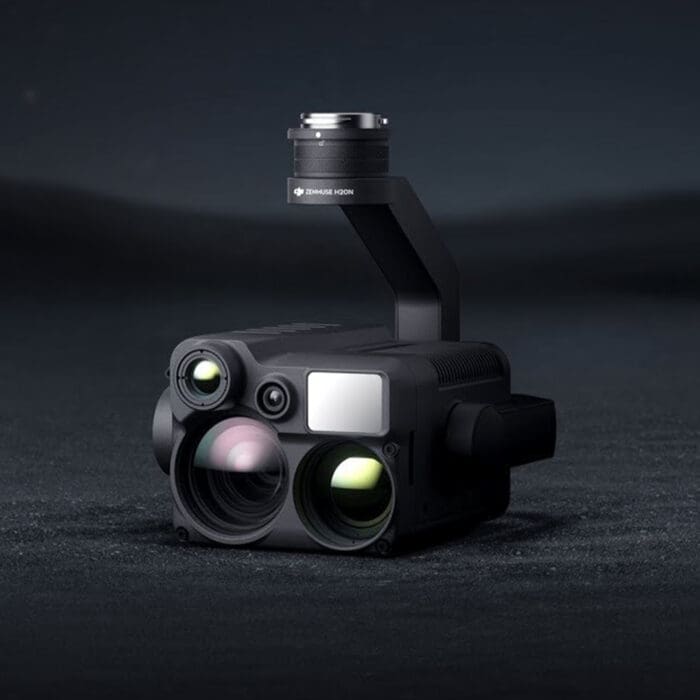

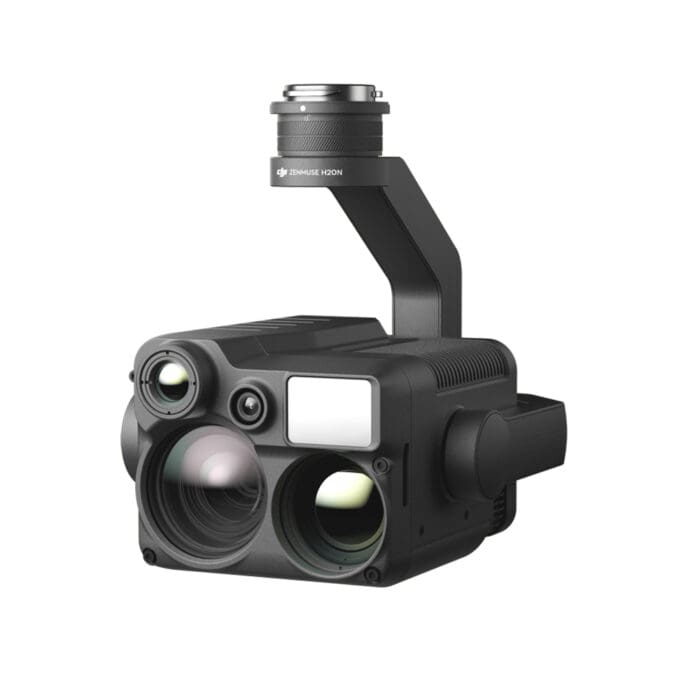

Exploring The DJI Zenmuse H20N: The Ultimate UAV Payload
When it comes to high-performance aerial imaging, the DJI Zenmuse H20N stands out as a game-changer. This versatile UAV payload, designed for enterprise applications, combines multiple Camera capabilities into a single unit, making it an indispensable tool for professionals across various industries. In this product description, we dive into its specifications, features, and benefits, while answering some common questions about the DJI Zenmuse H20N.
VISIT THIS CATEGORY PAGE TO EXPLORE NIGHT VISION PAYLOADS.
What Is The Zenmuse H20 Used For?
The Zenmuse H20N is specifically engineered for tasks such as search and rescue, infrastructure inspections, and surveillance. With its dual-vision capabilities and advanced thermal imaging, this Camera is perfect for public safety officials, construction managers, and environmental monitoring professionals who require high-quality visuals from above.
Technical Zenmuse H20N Specifications And Features
General Specifications
Product Name: Zenmuse H20N
Dimensions: 178 x 135 x 161 mm
Weight: 878 ± 5 g
Protection Rating: IP44
Laser Safety: Class 1M (IEC 60825-1:2014)
Supported Aircraft: Matrice 300 RTK, Matrice 350
Gimbal Specifications
Angular Vibration Range: ±0.01°
Mount: Detachable
Controllable Range:
Pan: ±320°
Tilt: -120° to +60°
Mechanical Range:
Pan: ±330°
Tilt: -132.5° to +68°
Roll: -90° to +60°
Max Control Speed:
Pan: 90°/s
Tilt: 90°/s
DJI H20N Camera Features
Zoom Camera
Sensor: 1/1.8" CMOS; Effective Pixels: 4M
Lens:
Focal Length: 6.8-119.9 mm (approx. 32.7-574.5 mm equivalent)
Aperture: f/1.6-f/11
Focus:
Wide: 1 m to ∞
Tele: 8 m to ∞
Focus Modes: MF/AF-C/AF-S
Exposure Mode: Manual, Auto
Exposure Compensation: ±3.0 (1/3 increments)
Metering Modes: Spot Metering, Average Metering
AE Lock: Supported
Electronic Shutter Speed:
Photo: 8-1/8000 s
Video: 1/30-1/8000 s
Improved Noise Reduction Off (Night Scene Mode): 1/10–1/8000s
Improved Noise Reduction enabled in Night Scene Mode: 1/5-1/8000 s
ISO Range:
Video: 100-102400
Photo: 100-102400
Video Resolution:
2688×1512 @ 30fps
1920×1080 @ 30fps
1920x1080 at 10 frames per second (with improved noise reduction off)
1920x1080 at 5 frames per second (with improved noise reduction on)
Video Format: MP4
Max Image Size: 2688×1512
Photo Format: JPEG
Wide DJI H20N Camera For Enterprise Drones
Sensor: 1/2.7" CMOS; Effective Pixels: 2M
Lens:
DFOV: 73.6°
Focal Length: 4.5 mm (approx. 29 mm equivalent)
Aperture: f/2.8
Focus: 1 m to ∞
Exposure Mode: Auto
Exposure Compensation: ±3.0 (1/3 increments)
Electronic Shutter Speed:
Photo: 0.8-1/8000 s
Video: 1/30-1/8000 sVideo Resolution:
1920×1080 @ 30fps
1920x1080 at 10 frames per second (with improved noise reduction off)
1920x1080 @ 5fps (Night Scene Mode, Enhanced Noise Reduction On)
Max Image Size: 1920×1080
Image Format: JPEG
Thermal Cameras
Tele Infrared Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Lens:
DFOV: 12.5°
Focal Length: 44.5 mm (approx. 196 mm equivalent)
Aperture: f/1.2
Focus: 45 m to ∞
Equivalent Digital Zoom: 16x, 32x
Video Resolution: 640×512 @ 30fps
Image Resolution: 640×512
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
≤50 mK @ f/1.0 is the NETD or Noise Equivalent Temperature Difference.
Wide Infrared Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Lens:
DFOV: 45.5°
Focal Length: 12 mm (approx. 53 mm equivalent)
Aperture: f/1.0
Focus: 5 m to ∞
Equivalent Digital Zoom: 4x
Video Resolution: 640×512 @ 30fps
Image Resolution: 640×512
Laser Range Finder
Wavelength: 905 nm
Maximum Power: 3.5 mW
Measuring Accuracy: ± (0.2 m + target distance x 0.15%)
Measuring Range: 3-1,200 m
Safety Regulation Level: Class 1M
Storage and Environmental Specifications
Supported microSD Cards: UHS-I Speed Grade 3 microSD card (up to 128 GB)
File System: exFAT
Operating Temperature: -20° to 50° C (-4 to 122°F)
Temperature range for storage: -20° to 60° C (-4 to 140°F).
The best-in-class Zenmuse H20N Camera Quality is another reason why drone buyers prefer investing in this drone.
"N" for Night Vision
The Zenmuse H20N integrates starlight sensors1 into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
What Is The Difference Between Zenmuse H20T And H20N?
The DJI Zenmuse H20N and H20T are two powerful payloads designed for enterprise applications, yet they serve distinct purposes and offer different features. Let’s delve into their comparative advantages and highlight how the H20N is particularly compatible with the Matrice 300 RTK.
Enhanced Thermal Imaging Capabilities
The Zenmuse H20N stands out with its advanced thermal imaging features:
- Dual Thermal Cameras: The H20N is equipped with both a tele infrared thermal Camera and a wide infrared thermal Camera. This dual setup allows for capturing both detailed close-up thermal readings and broader thermal landscapes, which is crucial for applications like search and rescue, disaster management, and infrastructure inspections.
- Superior Resolution and Sensitivity: The thermal resolution of 640×512 and a low noise equivalent temperature difference (NETD) of ≤50 mK at f/1.0 provide clearer thermal images. This level of detail is vital for identifying subtle temperature variations in critical environments, such as identifying hot spots in electrical equipment or monitoring wildlife.
Integration with Aircraft
The DJI Zenmuse-H20N is optimized for seamless integration with both the Matrice 300 RTK and the Matrice 350 series:
- DJI Zenmuse H20N Compatibility with the Matrice 300 RTK: The H20N features dedicated firmware and compatibility enhancements that allow it to work effectively with the Matrice 300 RTK. This integration ensures reliable data transmission and communication, enhancing operational efficiency.
- Enhanced Flight Control: Users can leverage advanced flight control features tailored for the Matrice 300, such as precise gimbal control, intelligent flight modes, and real-time data overlays. This compatibility enhances the user experience, allowing for smoother and more efficient aerial operations.
DJI H20N Camera Features, Quality and Versatility
In terms of Camera capabilities, the H20N offers several notable improvements:
- Zoom Capabilities: The H20N features a 1/1.8" CMOS sensor with an impressive zoom range of 6.8-119.9 mm, equating to approximately 32.7-574.5 mm in focal length. This allows users to capture distant objects with exceptional clarity, making it particularly effective for surveillance, wildlife monitoring, and infrastructure inspections.
- Wide-Angle View: The wide Camera in the H20N has a diagonal field of view (DFOV) of 73.6°, enabling users to cover expansive areas in a single shot. This feature is advantageous for tasks that require broad situational awareness, such as search and rescue operations or large-scale inspections.
Operational Features
The H20N also incorporates several operational enhancements:
- Improved Exposure and Shutter Options: With a range of exposure modes and an electronic shutter speed that spans from 8-1/8000 s, the H20N adapts easily to varying lighting conditions, ensuring quality imaging in both bright and low-light scenarios.
- Expanded ISO Range: With an ISO range of 100-102400 for both video and photo, the H20N excels in low-light environments. This capability is essential for nighttime inspections, surveillance, or operations in challenging weather conditions.
User Experience and Feedback
User reviews often highlight the H20N for its intuitive interface and user-friendly design, which make it accessible for operators of all skill levels. The streamlined controls and real-time data integration help maximize operational efficiency, especially during complex missions.
Practical Applications
The enhanced features of the Zenmuse H20N make it suitable for various applications, including:
- Search and Rescue: The combination of high-resolution imaging and thermal capabilities allows first responders to locate individuals in challenging environments.
- Infrastructure Inspections: The zoom and wide cameras provide detailed imagery for inspecting bridges, power lines, and buildings, facilitating maintenance and safety assessments.
- Environmental Monitoring: The dual thermal cameras can be used to monitor wildlife habitats, track temperature changes, and assess environmental impacts.
Compatible Innovations: The DJI Zenmuse H20N And Matrice 300 RTK
In the rapidly evolving world of drone technology, the partnership between the DJI Zenmuse H20N and the MATRICE 300 RTK stands out as a game-changer across multiple industries. This powerful combination not only enhances aerial capabilities but also transforms how professionals approach complex tasks. Let’s explore how this synergy is reshaping various fields.
Seamless Compatibility
One of the key strengths of the Zenmuse H20N is its seamless integration with the Matrice 300 RTK. Designed specifically for this drone, the H20N is easy to mount and provides robust performance. This compatibility ensures that users can take full advantage of the drone’s flight control systems, enabling real-time data transmission and enhanced operational efficiency.
The intelligent features of the H20N, such as its advanced imaging capabilities and AI-powered functionalities, leverage the Matrice 300’s strengths, including its impressive obstacle avoidance system. This combination allows operators to focus on data collection without worrying about the intricacies of drone control.
Transformative Applications
Public Safety
For first responders, every second counts. The H20N’s thermal and optical zoom capabilities make it an invaluable tool in search and rescue missions. With the ability to cover large areas quickly and effectively, emergency teams can assess situations from above, gaining critical insights that aid in decision-making during emergencies.
Infrastructure Inspection
When it comes to inspecting bridges, power lines, and other vital structures, the H20N excels. Its multi-sensor setup, including a laser rangefinder, allows for detailed inspections that can identify potential issues before they become costly repairs. This proactive approach enhances safety and ensures the longevity of critical infrastructure.
Agriculture
In agriculture, the H20N opens new avenues for crop health monitoring. Farmers can utilize its thermal imaging capabilities to assess plant health and identify areas needing attention. This targeted approach to farming not only boosts yields but also promotes sustainable practices by optimizing resource use.
Construction
For construction professionals, the H20N is a game-changer in site surveying and project management. High-resolution imagery and precise measurements help teams monitor progress and ensure that projects stay on track. With aerial insights, construction managers can make informed decisions that enhance efficiency and safety.
Environmental Monitoring
Environmental scientists and conservationists benefit greatly from the H20N’s capabilities. Whether conducting wildlife surveys or managing forests, the payload provides essential data for research and conservation efforts. Aerial monitoring allows for a broader understanding of ecological systems, contributing to more effective management strategies.
Infrared Zoom
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.
Synchronized Split-screen Zoom
H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.
Compatible Innovations: The DJI Zenmuse H20N And Matrice 350 RTK
In the world of drone technology, advancements are continuously reshaping industries. One such breakthrough is the compatibility of the DJI Zenmuse H20N with the MATRICE 350. This powerful combination not only enhances aerial capabilities but also transforms how professionals approach their work. Let’s dive into how this integration is making waves across various fields.
Seamless Compatibility
The DJI Zenmuse H20N is designed for seamless integration with the Matrice 350, ensuring that users can quickly mount the payload and start their operations without hassle. This compatibility allows the H20N to utilize the drone’s advanced flight control systems, enabling real-time data sharing and optimal performance.
Additionally, the H20N harnesses the intelligent features of the Matrice 350, such as its robust obstacle avoidance and long flight times. This synergy empowers operators to focus on their missions, confident in the reliability and efficiency of their equipment.
Enhancing Applications Across Fields
ublic Safety
In the realm of public safety, the H20N’s dual capabilities—thermal and optical zoom—are invaluable. First responders can utilize these features during search and rescue operations, allowing them to cover large areas quickly and assess situations from the sky. This capability enhances situational awareness, enabling quicker decision-making in critical moments.
Infrastructure Inspection
The H20N excels in infrastructure inspections, offering high-resolution imaging and a laser rangefinder. Inspectors can evaluate bridges, power lines, and other essential structures efficiently, identifying potential issues before they escalate. This proactive tactic reduces maintenance costs as well as improves safety all at the same time.
Agriculture
Farmers can harness the power of the H20N for precision agriculture. With its thermal imaging capabilities, the payload allows for detailed crop health monitoring. Farmers can identify areas that require attention, optimizing resource use and boosting overall yields while promoting sustainable practices.
Construction
For the construction industry, the Zenmuse H20N is a vital tool for site surveying and progress monitoring. High-resolution imagery helps teams track project advancements and ensure compliance with plans. With aerial insights, construction managers can make data-driven decisions, enhancing efficiency and project outcomes.
Environmental Monitoring
The H20N is also a game-changer for environmental monitoring. Researchers and conservationists can conduct wildlife surveys and monitor ecological changes more effectively. Aerial data collection provides a broader understanding of environmental dynamics, aiding in the development of effective conservation strategies.
Energy Sector
In the energy sector, the H20N can be used for inspecting solar farms and wind turbines. Its thermal imaging capabilities allow operators to identify hot spots and inefficiencies in solar panels, while its optical zoom can facilitate detailed inspections of wind turbine blades. This proactive maintenance can lead to increased energy production and reduced downtime.
Disaster Management
During natural disasters, the H20N provides critical support for damage assessment and recovery planning. Aerial surveys can quickly map affected areas, providing responders with vital information about infrastructure damage and helping to prioritize relief efforts. This capability ensures a more organized and efficient response during crises.
Urban Planning
Urban planners can benefit from the H20N’s aerial data collection for analyzing land use and urban growth. High-resolution imagery helps planners visualize current developments and make informed decisions about zoning and infrastructure improvements. This data-driven approach leads to more sustainable urban environments. The users of this product have given positive DJI Zenmuse H20N Review about this item.
A Game-Changer For Aerial Operations: Grab This Product Now!
The DJI Zenmuse H20N is not just another UAV payload; it is a transformative tool that enhances operational efficiency and data collection across numerous industries. Its seamless integration with the Matrice 300 RTK and Matrice 350 ensures users benefit from advanced flight controls and real-time data transmission. The dual thermal cameras provide unprecedented versatility, enabling both detailed close-up and broad thermal views essential for critical operations. Are you looking for the latest Zenmuse H20N Price In India? If yes, contact our sales team to receive the best rate.
With high-resolution imaging, expansive zoom capabilities, and robust construction, the H20N is tailored for demanding environments, allowing professionals to tackle complex challenges effectively. Whether it’s assisting first responders in emergencies, enabling construction managers to monitor projects, or helping farmers optimize crop health, the Zenmuse H20N empowers users to unlock new possibilities in their fields. As drone technology continues to evolve, the H20N stands out as a key player in shaping the future of aerial applications, proving that the sky is not the limit but just the beginning. Are you looking for the latest Zenmuse H20N Price In India? If yes, contact our sales team to receive the best rate.
FAQ’s on DJI Zenmuse H20N
The DJI Zenmuse H20N is a multi-sensor payload featuring optical and thermal cameras, designed for use with the Matrice 300 RTK drone.
Key features include a 20 MP zoom Camera, a 12 MP wide Camera, and a thermal Camera, along with a laser rangefinder for precise measurements.
The H20N is primarily compatible with the Matrice 300 RTK and is not designed for use with other DJI drone models.
The H20N provides high-resolution imaging and thermal data, allowing for efficient and detailed inspections of infrastructure like bridges and power lines.
Industries such as public safety, agriculture, construction, energy, and environmental monitoring can greatly benefit from the H20N’s capabilities.
Yes, its thermal imaging capabilities make it an excellent tool for search and rescue operations, enabling quick identification of subjects in various conditions.
The optical zoom Camera on the H20N can achieve up to 30x optical zoom and 200x digital zoom.
The H20N’s thermal Camera excels in low-light conditions, making it effective for night operations and poor visibility scenarios.
The H20N can collect high-resolution images, thermal data, and precise distance measurements through its integrated sensors.
By providing detailed thermal images, the H20N allows farmers to assess crop health and optimize irrigation and fertilization practices.
