Foxtech Loong 2160 VTOL
₹329,850.00 – ₹1,439,850.00
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deals with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout

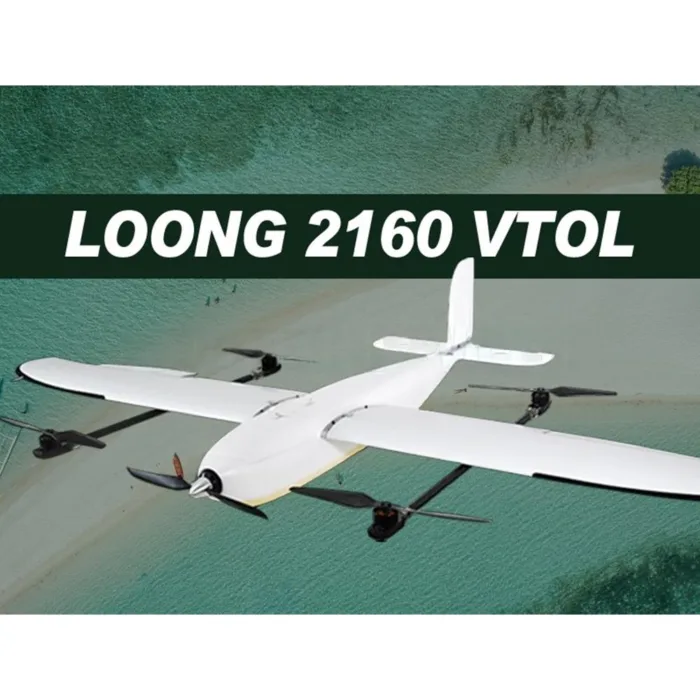

Foxtech Loong 2160 VTOL is a quick-assemble, reliable high performance VTOL specifically design for mapping. It has the advantage of being cost-effective and easy-to-use. It features aerodynamic shape with 2160mm wingspan and 1200mm fuselage. Made from EPO and reinforced by carbon tubes that are of high tensile strength and low weight, the whole frame is durable and portable, weighing only 1kg.
In order to reinforce the drone, the belly is protected by wearproof PVC layer and two wings are covered with a layer of high-strength Aluminum-plastic Film for protection.
It adopts “4+1” motor design that includes 4 VTOL motors and 1 fixed-wing motor, realizing space-efficient VTOL and fast-speed fixed wing task performing at the same time with powerful propulsion system.
Besides, it withstands 5.5m/s-7.9m/s(12.5mph-17.5mph) wind, making it possible to perform aerial task in various complex situations.
The ESC for fixed wing mode is mounted on the outside for better heat dissipation. Metal buckle is installed in the center of gravity position to prevent loosening and also makes it easier to locate CG.
The camera cabin’s neat wiring layout helps to configure the camera without wires getting intertwined.
The biggest highlight of Loong is that it adopts quick-assemble design, which allows you to assemble it easily without any tools so as to shorten preparation time for each flight.

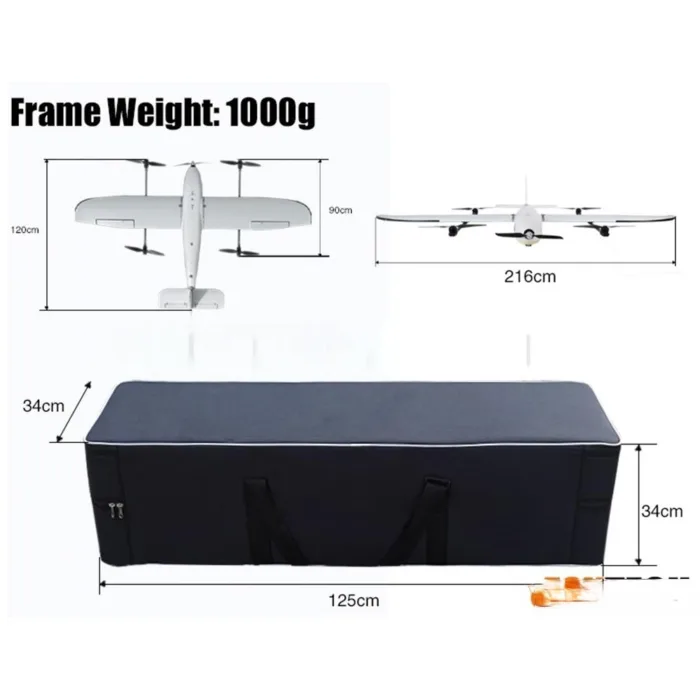

Specifications:
Version: Loong 2160 VTOL
Wingspan: 2160mm
Fuselage: 1200mm
Material: EPO, Aluminum-plastic Film, PVC
Frame Weight: 1kg
Basic Empty Weight: 5.6kg (no battery)
Max. Take-off Weight: 8kg
Recommended Cruising Speed: 18-20m/s
Stall Speed: 12-14m/s
Suggested Take-off Altitude: 0~1500m
Wind Resistance: 5.5m/s-7.9m/s (12.5mph-17.5mph)
Take-off/Landing: VTOL
Working Voltage: 24V
Working Temperature: -10℃-40℃
Carrying Case: 125cm*34cm*34cm
Your Purchase Includes:
ARF Combo:
1x Loong 2160 VTOL Frame
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 5052 KV400
4x VTOL ESC 40A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 9g Servo
2x(pair) 1655 MARKII Matte Carbon Fiber Propeller
1x 1612 Folding Propeller
1x Pitot Tube
1x Carrying Case

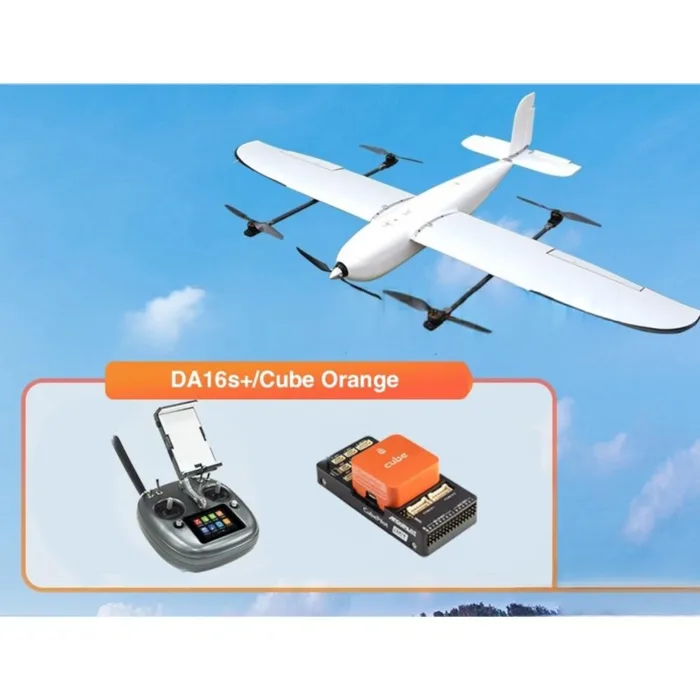

Pixhawk Cube Orange RTF Combo
1x Loong 2160 VTOL Frame
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 5052 KV400
4x VTOL ESC 40A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 9g Servo
2x(pair) 1655 MARKII Matte Carbon Fiber Propeller
1x 1612 Folding Propeller
1x Pitot Tube
1x Carrying Case
1x Assembling, tuned and Flying Test Service

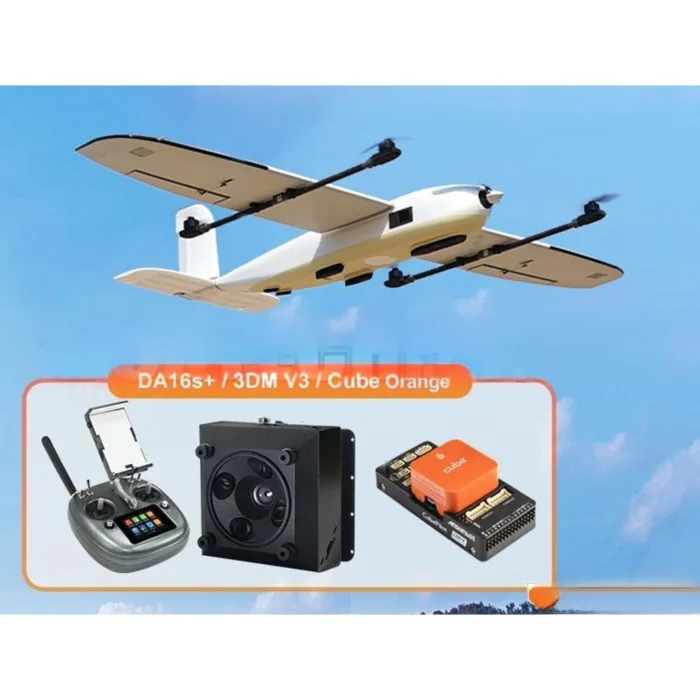

Cube Orange/3DM V3 RTF Combo
1x Loong 2160 VTOL Frame
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x FOXTECH 3DM V3 Oblique Camera-120MP
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 5052 KV400
4x VTOL ESC 40A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 9g Servo
2x(pair) 1655 MARKII Matte Carbon Fiber Propeller
1x 1612 Folding Propeller
1x Pitot Tube
1x Carrying Case
1x Assembling, tuned and Flying Test Service
V5+/3DM V3 RTF Combo
1x Loong 2160 VTOL Frame
1x V5+ Flight Controller with NEO 3 Pro GNSS
1x FOXTECH 3DM V3 Oblique Camera-120MP
1x DA16S+ Radio Controller
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 5052 KV400
4x VTOL ESC 40A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 9g Servo
2x(pair) 1655 MARKII Matte Carbon Fiber Propeller
1x 1612 Folding Propeller
1x Pitot Tube
1x Carrying Case
1x Assembling, tuned and Flying Test Service
V5+ RTF Combo
1x Loong 2160 VTOL Frame
1x V5+ Flight Controller with NEO 3 Pro GNSS
1x DA16S+ Radio Controller
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 5052 KV400
4x VTOL ESC 40A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 9g Servo
2x(pair) 1655 MARKII Matte Carbon Fiber Propeller
1x 1612 Folding Propeller
1x Pitot Tube
1x Carrying Case
1x Assembling, tuned and Flying Test Service

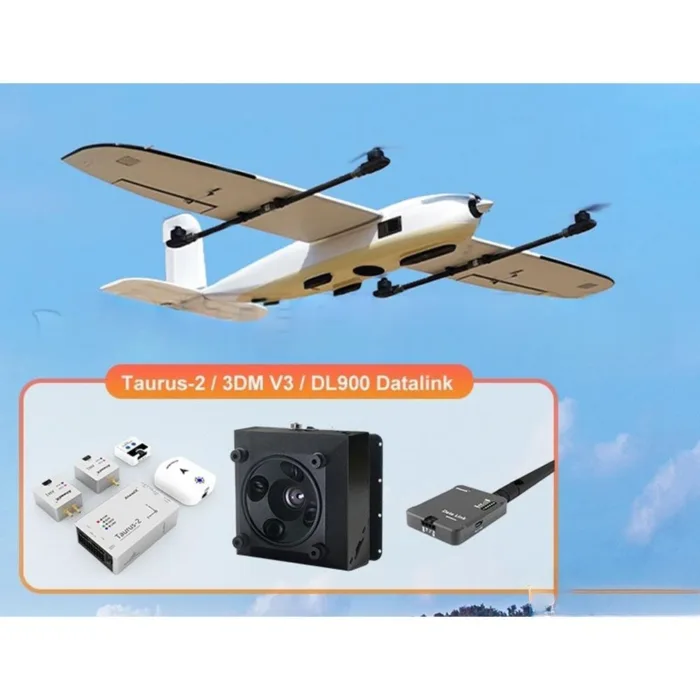

Taurus-2 RTF Combo
1x Loong 2160 VTOL Frame
1x Taurus-2 Flight Control System
1x FOXTECH 3DM V3 Oblique Camera-120MP
1x DL900 Datalink
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 5052 KV400
4x VTOL ESC 40A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 9g Servo
2x(pair) 1655 MARKII Matte Carbon Fiber Propeller
1x 1612 Folding Propeller
1x Pitot Tube
1x Carrying Case
1x Assembling, tuned and Flying Test Service
Option:
1x Diamond 6S 30000mAh HV
| VTOL Version |
ARF Combo ,CUAV V5+/3DM V3/DA16S+ RTF Combo ,CUAV V5+/DA16S+ RTF Combo ,Cube Orange/3DM V3/DA16S+ RTF Combo ,Pixhawk Cube Orange RTF ,Taurus-2 RTF Combo |
|---|
