Foxtech AYK-250 Pro VTOL
₹1,499,850.00 – ₹1,534,350.00
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deals with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout

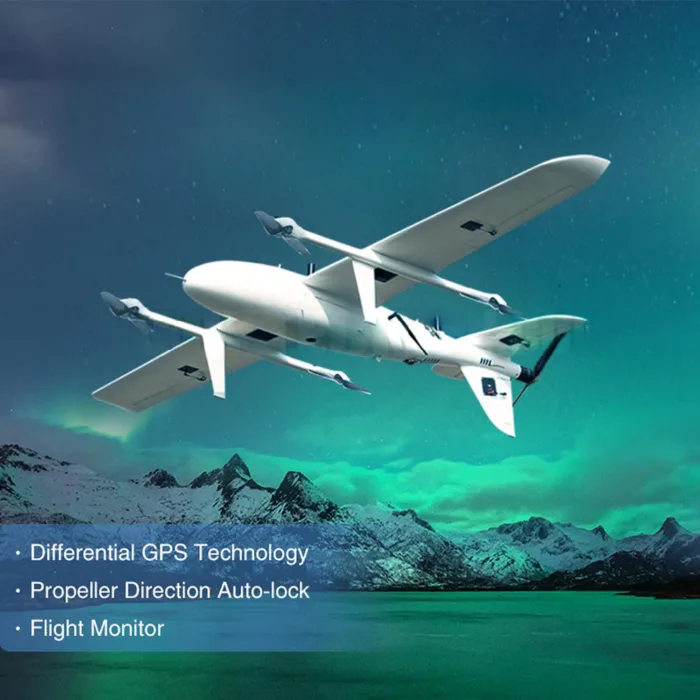

Foxtech AYK-250 Pro VTOL is an upgraded version of Foxtech AYK-250 VTOL. Adopting CAN Bus System, differential GPS and propeller auto-lock technology, AYK-250 Pro is safer, more efficient and more reliable.
Integrate servos, motors, PMUs, air speedometer and other device signals into one CAN Bus, for faster connection, better EMI(electromagnetic interference) resistance ability, better flight stability, longer signal-delivery distance and clearer troubleshooting operation.
AYK-250 Pro uses two F9P Positioning Module, i.e. dual GPS which features:
①High reliability, since they have redundancy when there is a failure of signal loss in one of the GPS modules.
②Differential GPS to obtain a attitude estimation based in GPS.
③Enhanced accuracy through the distance between the two GPS antennas installed in the drone, which makes it possible to obtain a suitable navigation estimation from a minimum distance between GPS antennas of 50 cm.
④No need for the compass, so drones with dual GPS sensor can be used in situations with electromagnetic interferences, such as powerlines inspections, monitoring mining works in iron mines or other environments with strong electromagnetic fields.
Propeller auto-lock technology reduces wind resistance in fixed-wing mode and highly increases the efficiency.
Quick-mount design in the tail saves space for storage and transportation.
Specification:
Version: Foxtech AYK-250 Pro VTOL
Type: VTOL
Color: White
Wingspan: 2500 mm
Length: 1260 mm
Clearance To Ground: 195 mm
Material: Carbon Fiber/ Glass Fiber/ KEVLAR/ PVC etc.
Basic Empty Weight: 7.2 kg
Max Take-Off Weight: 15 kg
Suggested Take-Off Weight: 12.5 kg
Suggested Cruising Speed:
19-20 m/s@No Payload
22-23 m/s
Max Cruising Speed: 28 m/s
Climbing Speed: 5 m/s
Stall Speed:15 m/s
Max Flight Altitude:2000 m
Battery Cabin: 260*150*85 mm
Wind Resistance: 5.5 m/s-7.9 m/s(VTOL)
Working Voltage: 12S
Working Temperature: -20℃~45℃
Your Purchase Includes:
RTF Combo (Pixhawk / X7+ Pro):
1x AYK-250 VTOL Frame
4x VTOL Motor
4x VTOL ESC
1x Motor for Fixedwing Mode
1x ESC for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo
1x Pixhawk Cube Orange Standard Set
(or X7+ Pro Flight Controller)
2x AEROFOX CAN F9P Positioning Module
1x DA16S+ Radio Controller
1x 25A BEC
1x Air Speedometer
1x Carrying Case
1x Assembling,tuned and Flying Test Service
Option:
1x Diamond 12s 32000mAh HV
| VTOL Version |
Pixhawk RTF ,X7+ Pro RTF |
|---|
