DJI FlyCart 30 Delivery Drone: Revolutionizing Payload Delivery With Cutting-Edge Drone Technology

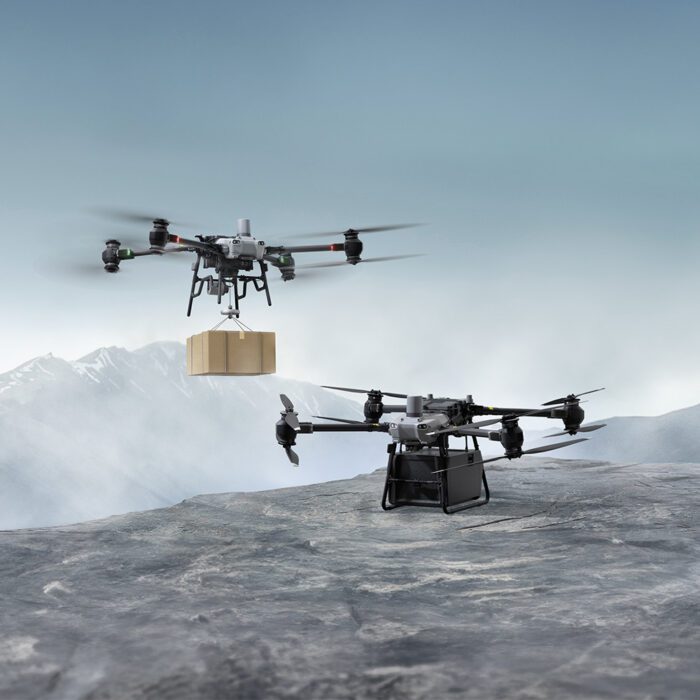

In the ever-evolving landscape of drone technology, the DJI FlyCart 30 Delivery Drone stands out as a game-changer, especially in the realm of payload delivery. This powerful drone for delivery from DJI is designed to meet the demands of modern logistics with its impressive specifications and innovative features. Whether you're a logistics professional or a drone enthusiast, understanding the capabilities of the FlyCart 30 Drone For Delivery can provide valuable insights into its potential applications and benefits. Let’s dive into what makes the FlyCart 30 drones for deliveries a remarkable addition to the delivery drones market.

VISIT THIS CATEGORY PAGE TO EXPLORE DELIVERY DRONES.

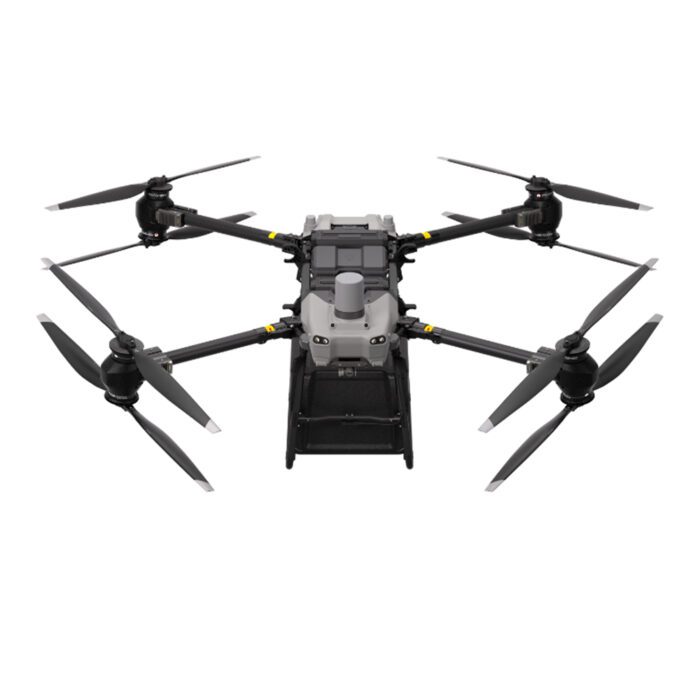

What Is The DJI FlyCart 30 Delivery Drone?

The DJI FlyCart 30 Delivery Drone is a heavy-lift drone designed specifically for efficient and reliable payload delivery. As a part of DJI's renowned lineup of drones for delivery, the Flykart 30 combines advanced technology with robust design to offer unparalleled performance. From its high payload capacity to its impressive flight endurance, this drone is built to handle a wide range of delivery tasks with ease.

DJI FlyCart 30 Specifications

Aircraft Specifications

Weight and Dimensions:

• Weight:

• • 42.5 kg (without battery)
  • 65 kg (with two DB2000 batteries)
• Max Takeoff Weight: 95 kg (with cargo at sea level)
• Max Diagonal Wheelbase: 2200 mm

Dimensions:

• Arms unfolded, propellers folded: 1590 x 1900 x 947 mm (LxWxH)
• Arms & propellers unfolded: 2800 x 3085 x 947 mm (LxWxH)
• Arms & propellers folded: 1115 x 760 x 1027 mm (LxWxH)
• Folding Method: Towards the body for easy transport and storage

Battery and Endurance:

• • Loadable Battery Quantity: 2

• Hovering Endurance (empty weight, with max battery capacity):

• • • 29 mins (dual battery mode)
    • 15 mins (single battery mode)

• Hovering Endurance (max weight, with max battery capacity):

• • • 18 minutes (30 kilogram weight load, dual battery mode)
    • 8 minutes with a 40 kg weight load as well as a single battery.

• Maximum Flying Distance (with maximum capacity of battery, empty weight):

• • • 28 km (dual battery mode)
    • 12 km (single battery mode)

• Maximum Flight Distance (maximum weight, with maximum battery capacity):

• • • 16 kilometers (with two batteries, 30 kg weight load)
    • 8 km (40 kg weight load, single battery mode)

• Maximum Flight Time (maximum weight, with maximum capacity of battery):

• • 18 minutes (30 kilogram weight load, dual battery mode)
  • 9 minutes with a 40 kg weight load as well as a single battery.

Note: These data points are based on controlled conditions with zero altitude and no wind, so actual performance may vary.

Operating Conditions

• Operating Temperature: -20° to 45° C
• Ingress Protection Rating: IP55

Flight and Navigation Features

Hovering Accuracy

• With strong GNSS signal:

• • ±10 cm horizontally as well as ±10 cm vertically with RTK positioning enabled
  • RTK positioning disabled: ±60 cm horizontal, ±30 cm vertical (radar enabled: ±10 cm)

RTK/GNSS Operating Frequency

• RTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
• GNSS: GPS L1, BeiDou B1I, Galileo F1, Galileo E1, QZSS L1

Speed and Altitude

• • Max Pitch Angle: 30°
  • Max Ascent Speed: 5 m/s (with a 30 kg payload)

• Max Descent Speed:

• • 3 m/s (vertical)
  • 5 m/s (tilted)
• Max Horizontal Speed: 20 m/s
• Max Flight Altitude: 6000 m (without payload)
• Max Wind Speed Resistance: 12 m/s

Propulsion and Build

Propulsion System

• Stator Size: 100 x 33 mm
• Motor KV Value: 48 rpm/V
• Max Motor Power: 4000 W/rotor
• Propellers Material: Carbon fiber composite
• Propellers Diameter: 54 inch
• Propellers Type: Foldable double-blade propellers
• Main-Rotor Diameter: 1375 mm
• Rotor Quantity: 8

Safety and Additional Features

LED Light:

• Effective Illumination Distance: 10 m
• Illumination Mode: 60 Hz, automatically switches on according to ambient light

DJI O3 Image Transmission:

• • Model: Pigeon (with DDR)-2T4R

• Signal Effective Distance:

• • 20 km (FCC)
  • 8 km (CE/SRRC/MIC)

Operating Frequency:

• • O3: 2.4000 to 2.4835 GHz, 5.725 to 5.850 GHz

• EIRP:

• • 2.400 GHz - 2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • 5.725 GHz - 5.850 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Data Security and Additional Sensors:

• • Data Security: AES-256
  • ADS-B: Supported

• Forward and Backward Active Phased Array Radar:

• • Model Number: RD241608RF (forward), RD241608RB (backward)
  • Altitude Detection: Fixed altitude range: 1.5-200 m
  • Rear Obstacle Avoidance: Sensible distance (rear): 1.5-50 m

Binocular Vision System:

• FOV: Horizontal: 90°, Vertical: 106°
• Requirements for Work Environment: Standard illumination as well as distinctly textured surfaces

Payload and Delivery Features

Cargo Case:

• Dimension: 754 x 472 x 385 mm (LxWxH)
• Inner Space: 573 x 416 x 305 mm (LxWxH)
• Material: EPP plus aluminum alloy frame
• Weighing Feature: Supported
• Weight: Approx. 3 kg
• Load Capacity: 0-40 kg

Parachute:

• Max Payload: ≤ 95 kg
• Dimension: 300 x 200 x 120 mm (LxWxH)
• Weight: Approx. 2.1 kg
• Automatic Reaction Time: Approx. 1000 ms
• Descending Speed: ≤ 6 m/s (at sea level, no wind)
• Parachute Shape: Square
• Material: Nylon
• Surface Area: Approx. 22 m²
• Minimum Opening Height: 60 m
• Operating Temperature: -20° to 45° C
• Ingress Protection Rating: IP55

Winch System (Optional):

• Model: A2EWI-30A
• Dimension: 252 x 195 x 193 mm (LxWxH)
• Body Weight: 2.5 kg (without clump and couple)
• Clump Weight: 1.9 kg
• Couple Weight: 0.6 kg
• DJI FlyCart 30 Payload Capacity: 5-30 kg (dual battery), 5-40 kg (single battery)
• Cable Length: 20 m
• Max Retraction Speed: 0.8 m/s
• Operating Temperature: -20° to 45° C
• Ingress Protection Rating: IP55

Battery and Charger

DJI DB2000 Intelligent Battery:

• Model: DB2000
• Capacity: 38000 mAh
• Nominal Voltage: 52.22 V
• Type: 14S1P
• Energy: 1984.4 Wh
• Weight: Approx. 11.3 kg
• Installation Method: Plug
• Dimension: 316 x 152 x 279 mm (LxWxH)
• Operating Temperature: -20° to 45° C
• Charging Rate: 5 to 15° C: 1.0C, 15 to 45° C: 2.5C
• Max Charging Power: 5700 W
• Automatic Heating Feature: Supported

DJI C8000 Intelligent Charger:

• Model: CHX101-7000
• Input: 90-264 V AC
• Output: 42-59.92 V DC
• Maximum Output Power: 7200 W (Dual input) as well as 3600 W (Single input)
• Output Channel Quantity: 2
• Protection features include fan stalls, short circuits, overheating, undervoltage, as well as more.
• Operating Temperature: -20° to 45° C

Remote Controller

DJI RC Plus:

• • APP: DJI Pilot 2
  • Operating Frequency: 2.400-2.483 GHz, 5.725-5.850 GHz

• EIRP:
• • 2.400-2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • 5.725-5.850 GHz: <33 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)
• Operating Temperature: -20° to 50° C
• Charging Environment Temperature: 5° to 40° C
• Built-in Battery Life: 3.3 hours
• External Battery: 2.7 hours
• Charging Method: USB-C fast charging with a maximum power of no less than 65 W
• Charging Time: 2.5 hours using both an internal and external battery, or 2 hours using the built-in battery
• Ingress Protection Rating: IP54
• Video Output Interface: HDMI
• Wi-Fi Protocol: Wi-Fi 6
• Bluetooth Protocol: Bluetooth 5.1
• Screen: 7.02 inch touch LCD display, resolution 1920 x 1200, brightness 1200 nits
• Dual Operator Mode: Supported

With its robust design and advanced technology, the Flykart 30 is a revolutionary tool for payload delivery, making it an essential asset for logistics, emergency services, and industrial applications.

DJI FlyCart 30 Features

The DJI FlyCart 30 Delivery Drone stands out in the drone industry with its innovative features designed to enhance payload delivery efficiency, navigation accuracy, and safety. Here's a closer look at the key features that make this FlyCart 30 Heavy Lift Drone a game-changer in the field of logistics and heavy-lift operations:

1. Heavy Lift Capabilities

The DJI FlyCart 30 Delivery Drone is engineered for exceptional payload capacity, making it an ideal choice for transporting large and heavy items.

• Payload Capacity:

• • Single Battery Mode: Can carry up to 40 kg, allowing for the delivery of substantial cargo in a single flight.
  • Dual Battery Mode: Supports up to 30 kg, offering flexibility in battery usage while still handling significant payloads.

This impressive capacity is beneficial for various applications, from industrial material transport to large-scale emergency supply deliveries.

2. Advanced Navigation and Stability

Navigating a drone with heavy payloads requires precision and stability, and the DJI FlyCart 30 Delivery Drone excels in these aspects through its advanced navigation systems.

• RTK Positioning:

• • High Precision: Offers an exceptional accuracy of ±10 cm horizontally and ±10 cm vertically when RTK positioning is enabled. This precision is crucial for maintaining stable flight paths and ensuring the accurate delivery of payloads.
  • GNSS Support: Equipped with comprehensive GNSS capabilities, including GPS, Galileo, BeiDou, and QZSS, providing robust and reliable positioning even in challenging environments.
• Hovering Accuracy: When RTK positioning is disabled, the FlyCart 30 Heavy Lift Drone maintains a horizontal accuracy of ±60 cm and vertical accuracy of ±30 cm (with radar enabled: ±10 cm). This ensures reliable hovering and flight stability, minimizing deviations.

3. Robust Flight Endurance

Long flight times and distances are essential for efficiency in delivery operations. The DJI FlyCart 30 Delivery Drone is designed to meet these needs with its robust endurance features.

• Maximum Flight Distance:

• • • Empty Weight: Achieves up to 28 km on a single charge, allowing for extensive delivery routes without needing frequent recharges.

• With Payload:

• • • • 30 kg Load: Can cover up to 16 km, suitable for delivering substantial cargo over considerable distances.
      • 40 kg Load: Achieves up to 8 km, providing a balance between payload capacity and flight range.

• Hovering Endurance:

• • Empty Weight: Up to 29 minutes with dual batteries and 15 minutes with a single battery.
  • Max Weight (30 kg): Up to 18 minutes with dual batteries and 8 minutes with a single battery.
  • Max Weight (40 kg): Up to 9 minutes with a single battery, allowing for shorter but efficient delivery operations.

4. Enhanced Safety Features

Safety is a top priority for any commercial drone, especially when carrying heavy payloads. The DJI FlyCart 30 Delivery Drone incorporates several advanced safety features to ensure secure and reliable operations.

• • ADS-B Support: The drone includes Automatic Dependent Surveillance–Broadcast (ADS-B) support, which enhances situational awareness by broadcasting its position and receiving information about nearby aircraft. This helps in avoiding mid-air collisions and maintaining safe operation in busy airspace.

• Obstacle Avoidance Systems:

• • • Forward and Backward Active Phased Array Radar: Features radar systems for both forward and backward sensing. This allows this FlyCart 30 Drone For Delivery to detect and avoid obstacles in its flight path, reducing the risk of collisions during navigation.
    • Rear Obstacle Avoidance: Detects obstacles at a range of 1.5 to 50 meters behind the drone, providing comprehensive protection during takeoff, landing, and flight.

• Parachute System:

• • Emergency Deployment: Equipped with a parachute that automatically deploys in the event of a critical failure. This system ensures a controlled descent, protecting both the drone and the payload from damage.
  • Specifications: The parachute can support a maximum payload of 95 kg and has a surface area of approximately 22 m². This FlyCart 30 Drone For Delivery is made from durable nylon and can descend at speeds of up to 6 m/s at sea level.

5. Additional Features

• Intelligent Battery System: The DJI FlyCart 30 Delivery Drone uses the DJI DB2000 intelligent battery, which features a high capacity of 38,000 mAh and advanced temperature management, including automatic heating in low temperatures. This provides excellent performance and dependability under varied environmental situations.
• Advanced Charging Solutions: The DJI C8000 intelligent charger provides fast and efficient charging with a maximum output power of 7200 W (dual input), allowing quick turnaround times between flights.
• Versatile Remote Controller: The DJI RC Plus controller supports dual operator mode, features a 7.02-inch touch LCD display with high brightness, and integrates with DJI Pilot 2 for advanced control and monitoring.

DJI FlyCart 30 Applications

The DJI FlyCart 30 is designed to cater to a wide range of industries and applications where efficient payload delivery is essential. Its advanced features and robust capabilities make it a versatile tool for various sectors. Here's a detailed look at how this FlyCart 30 Drone For Delivery can be utilized across different fields:

1. Logistics and Supply Chain

The FlyCart 30 revolutionizes logistics and supply chain operations by addressing the challenges of payload delivery in both urban and remote areas.

• Last-Mile Delivery: With its significant payload capacity of up to 40 kg with a single battery and extended flight range, the FlyCart 30 is ideal for last-mile delivery solutions. It can transport large parcels, reducing the need for ground transportation and speeding up delivery times.
• Remote Location Supply: In regions that are difficult to access by traditional vehicles, such as rural areas or places with challenging terrain, the DJI FlyCart 30 Delivery Drone offers a reliable means of transport. Its capability to cover distances of up to 28 km (when empty) ensures that goods can be delivered efficiently to remote locations.
• Urban Logistics: For city-based operations, the FlyCart 30’s advanced navigation and stability features help in managing complex delivery routes and avoiding obstacles. This is especially useful for delivering bulky items to high-rise buildings or congested areas.

2. Medical and Emergency Services

The FlyCart 30 plays a crucial role in medical and emergency services, providing timely assistance in critical situations.

• Medical Supply Deliveries: In emergencies, such as natural disasters or health crises, the ability to transport medical supplies quickly is paramount. The FlyCart 30’s heavy lift capabilities enable it to carry large quantities of medical supplies, including oxygen tanks, medicines, and other critical equipment, directly to the site of need.
• Emergency Response: For first responders, the drone can deliver essential tools and equipment to hard-to-reach locations. This can include delivering defibrillators, first aid kits, or other emergency gear to remote or inaccessible areas where traditional delivery methods might be delayed.
• Disaster Relief: During natural disasters, the DJI FlyCart 30 Delivery Drone can be instrumental in delivering aid, including food, water, and medical supplies, to affected areas. Its robust design and ability to operate under challenging conditions ensure that aid reaches those in need promptly.

3. Industrial and Construction

The FlyCart 30 enhances efficiency and productivity in the industrial and construction sectors by facilitating the transport of tools, equipment, and materials.

• Construction Site Delivery: On construction sites, the FlyCart 30 can deliver heavy tools, equipment, and materials such as steel beams or concrete blocks directly to the construction zone. This eliminates the need for traditional transport vehicles and reduces delays caused by traffic or other logistical issues.
• Maintenance and Repairs: For ongoing maintenance or repair work in industrial facilities, the drone can deliver replacement parts and tools to specific locations within the facility. This capability ensures that operations can continue smoothly with minimal downtime.
• Material Handling: The drone’s ability to handle oversized and heavy payloads makes it suitable for moving materials between different sections of a large industrial site, optimizing workflow and increasing operational efficiency.

4. Environmental and Agricultural Applications

In addition to the primary sectors, the DJI FlyCart 30 Delivery Drone can be applied in environmental monitoring and agricultural operations:

• Environmental Monitoring: The drone can be used to transport sampling equipment or environmental monitoring devices to remote locations for data collection. Its long flight range and payload capacity are beneficial for surveying large areas and collecting environmental samples.
• Agricultural Logistics: In agriculture, the FlyCart 30 can deliver farming supplies such as seeds, fertilizers, and pesticides to different parts of a large farm. Its ability to handle heavy loads and navigate through various terrains makes it an asset for efficient agricultural operations.

5. Public Services and Events

The DJI FlyCart 30 also finds applications in public services and event management:

• Event Logistics: For large-scale events or festivals, the drone can be used to transport event supplies, including equipment, decorations, and refreshments, to various locations within the event site. This capability ensures that logistical operations run smoothly and efficiently.
• Public Safety: The drone can support public safety operations by delivering essential equipment or supplies to locations during public events or emergencies. Its advanced safety features and reliable performance make it a valuable tool for ensuring public safety.

Most Searched Questions About the DJI FlyCart 30 Delivery Drone

• What is the payload capacity of the DJI FlyCart 30?

1. 1. • The DJI FlyCart 30 can carry up to 40 kg with a single battery and 30 kg with dual batteries.

• How far can the DJI FlyCart 30 fly on a single charge?

1. 1. • It can fly up to 28 km when empty and 16 km with a 30 kg payload on a single charge.

• What is the maximum hover time of the DJI FlyCart 30?

1. 1. • Hovering endurance is up to 29 minutes with dual batteries and 15 minutes with a single battery.

• What is the maximum flight altitude of the DJI FlyCart 30?

1. 1. • The maximum flight altitude is 6000 meters without payload.

• What are the dimensions of the DJI FlyCart 30 when unfolded?

1. 1. • The dimensions are 2800 x 3085 x 947 mm (LxWxH) with arms and propellers unfolded.

• How accurate is the DJI FlyCart 30's positioning system?

1. 1. • With RTK positioning enabled, it offers ±10 cm horizontal and ±10 cm vertical accuracy.

• What is the DJI FlyCart 30’s maximum wind speed resistance?

1. 1. • It can resist wind speeds of up to 12 m/s.

• What safety features are included in the DJI FlyCart 30?

1. 1. • It includes ADS-B support, advanced obstacle avoidance systems, and an emergency parachute system.

• What type of battery does the DJI FlyCart 30 use?

1. 1. • It uses the DJI DB2000 Intelligent Battery, which has a capacity of 38000 mAh and a nominal voltage of 52.22 V.

• What materials are the DJI FlyCart 30’s propellers made of?

1. • The propellers are made of carbon fiber composite.

DJI FlyCart 30 Delivery Drone: Hurry Up! Call Us To Get This Product!

The DJI FlyCart 30 Delivery Drone represents a significant advancement in the field of drone technology, particularly for payload delivery and heavy-lift operations. With its high payload capacity, robust flight endurance, and advanced navigation systems, this drone is well-equipped to handle a variety of demanding tasks across different sectors.

Overall, the DJI FlyCart 30 Delivery Drone is a groundbreaking addition to the drone industry, offering enhanced capabilities that can transform how payloads are delivered across urban, rural, and remote areas. Its blend of heavy-lift capabilities, advanced technology, and safety features makes it an invaluable asset for modern logistics, emergency services, and industrial operations. Users of this product have given a positive FlyCart 30 Drone Review about this item.
