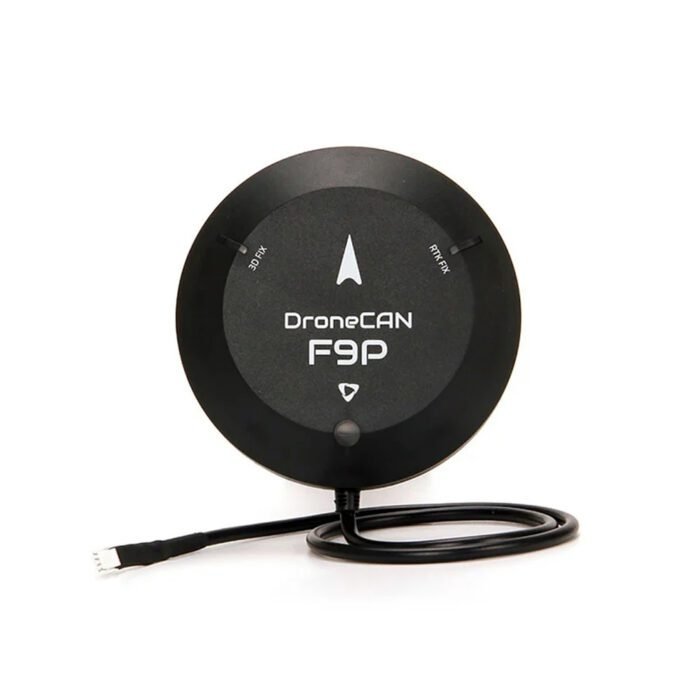

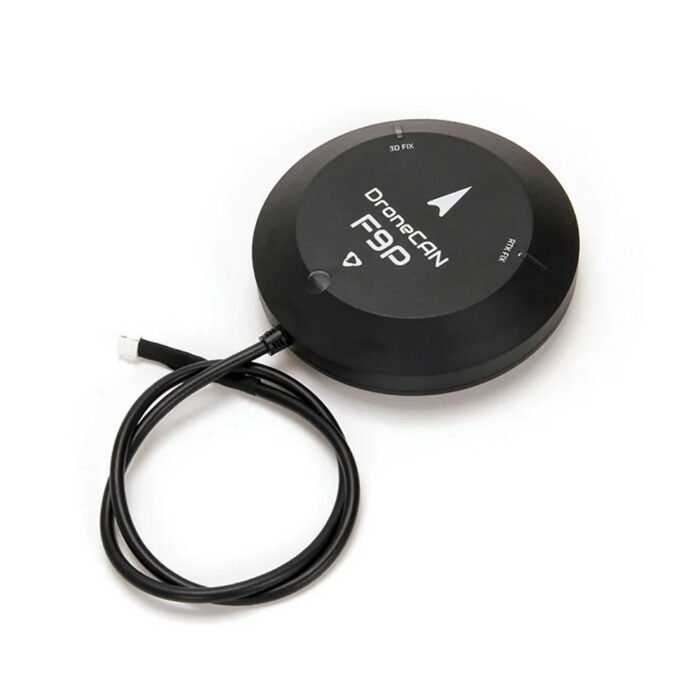

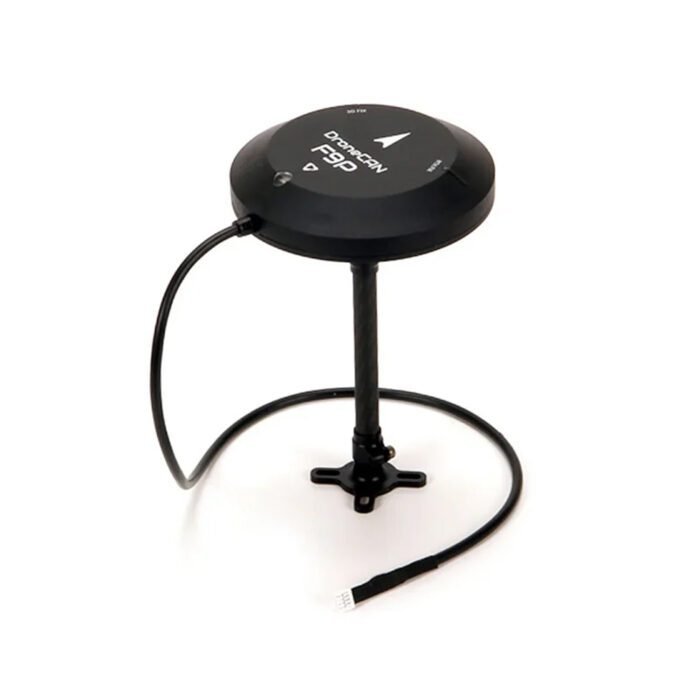

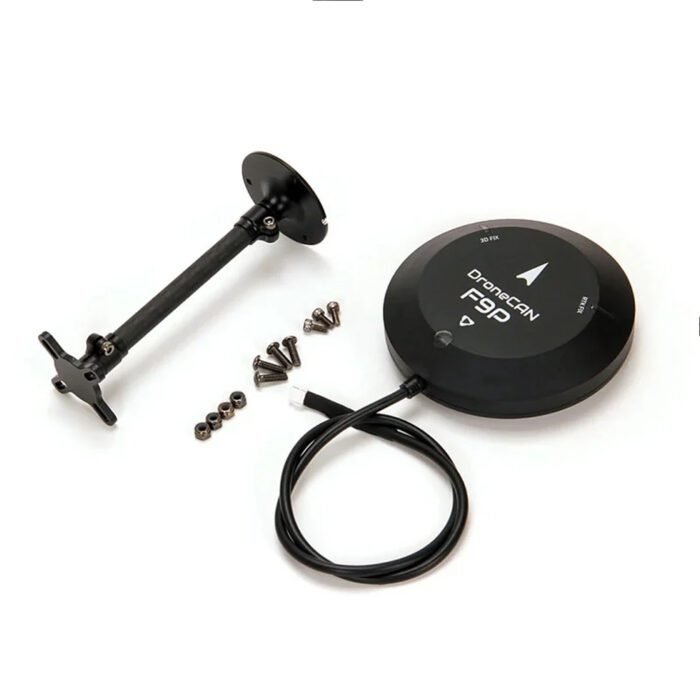

Holybro DroneCAN H-RTK F9P Rover 27 Cm

Unveiling This Product

The Holybro DroneCAN H-RTK F9P Rover 27 Cm represents the pinnacle of high-precision GNSS positioning systems, boasting cutting-edge features and unparalleled reliability.

Its integration of the DroneCAN protocol for communication sets it apart, ensuring seamless interoperability and efficient data transmission.

This innovative system is designed to meet the demands of a wide range of applications, from precision agriculture to surveying and mapping.

One of the standout features of the Holybro DroneCAN H-RTK F9P Rover 27 Cm is its multi-band RTK capability, which enables fast convergence times and consistent performance across diverse environments.

By simultaneously receiving signals from GPS, GLONASS, Galileo, and BeiDou satellites, it ensures robust and reliable positioning even in challenging conditions.

This comprehensive satellite coverage, coupled with a fast update rate, makes it ideal for highly dynamic applications that require centimeter-level accuracy.

The adoption of the DroneCAN Protocol brings numerous advantages to the Holybro DroneCAN H-RTK F9P Rover 27 Cm.

With an impressive navigation update rate of up to 8 Hz, users can expect real-time responsiveness and precision in their operations.

Moreover, the protocol’s upgradeability ensures that the system remains compatible with future advancements, safeguarding your investment in the long term.

In addition to its performance benefits, the Drone CAN Protocol enhances the Holybro DroneCAN H-RTK F9P Rover 27 Cm‘s system resilience to electromagnetic interference.

Compared to traditional UART communication, DroneCAN offers superior noise immunity, ensuring stable and consistent data transmission even in noisy environments.

This increased robustness is crucial for maintaining reliable GNSS positioning in challenging operating conditions.

Another key advantage of the Holybro DroneCAN H-RTK F9P Rover 27 Cm is its seamless integration with existing flight control systems.

By utilizing the CAN bus for communication, the system eliminates the need to occupy serial ports on the flight controller.

This not only simplifies installation and setup but also allows for the connection of multiple CAN devices via a hub, providing flexibility and scalability in system configuration.

Underneath its sleek exterior, the Holybro Drone CAN H-RTK F9P Rover 27 Cm is powered by advanced hardware components that deliver exceptional performance.

The u-blox ZED-F9P module serves as the backbone of the system, providing high-precision GNSS positioning capabilities.

Complementing this is the BMM150 compass, which ensures accurate heading information for precise navigation.

Driving the system operation of the Holybro DroneCAN H-RTK F9P Rover 27 Cm is the STM32G4 processor, a powerful microcontroller that operates at a clock speed of 170 MHz.

With 512 KByte Flash and 96KByte RAM, it provides ample processing power and memory for handling complex positioning algorithms and real-time data processing tasks.

This ensures smooth and efficient operation even in demanding applications.

Furthermore, the Holybro DroneCAN H-RTK F9P Rover 27 Cm features a tri-colored LED indicator, providing visual feedback on system status and performance.

Whether it is acquiring satellite signals, computing RTK solutions, or indicating error conditions, the LED indicator keeps users informed at a glance, facilitating intuitive operation.

To ensure compatibility and ease of use, the Holybro Drone CAN H-RTK F9P Rover 27 Cm is designed to work seamlessly with the open-source Pixhawk series flight controllers.

This compatibility allows users to leverage the full capabilities of the system within their existing UAV platforms, without the need for complex integration or customization.



In conclusion, the Holybro DroneCAN H-RTK F9P Rover 27 Cm sets a new standard for high-precision GNSS positioning systems, combining cutting-edge technology with unparalleled performance and reliability.

With its multi-band RTK capability, fast update rate, and robust communication protocol, it offers unmatched precision and responsiveness for a wide range of applications.

Whether you are mapping vast agricultural fields, surveying construction sites, or navigating complex urban environments, the Holybro DroneCAN H-RTK F9P Rover 27 Cm delivers the accuracy and reliability you need to succeed.

–

DroneCAN F9P Rover (Short Note)

The Rover model has a flatter profile and stronger water resistance. It uses a dual band patch antenna and comes with an integrated cable to connect to the CAN bus. It excels in spaces where there are few obstructions.

–

Product Features

1) The Rover model has a flatter profile and stronger water resistance.
2) It uses a dual-band patch antenna and comes with an integrated cable to connect to the CAN bus.
3) It excels in spaces where there are few obstructions.
4) Built with durable materials to withstand rugged conditions and ensure long-term reliability.

–

Product Specifications

1) Intended Application: Rover (aircraft) only
2) GNSS Receiver: U-blox ZED-F9P high-precision GNSS module
3) Antenna: Ceramic Patch Antenna with 20dB LNA
4) Processor: STM32G473
5) Magnetometer: BMM150 or IST8310
6) GNSS: BeiDou, Galileo, GLONASS, GPS / QZSS
7) GNSS Band: B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF
8) Positioning accuracy: 3D FIX: 1.5 m / RTK: 0.01 m
9) Communication Protocol: DroneCAN 1Mbit/s
10) Antennas Peak Gain (MAX): L1: 4.0dBi, L2:1.0 dBi
11) Time-TO-First Fix: Cold start: ≤29s, Hot start: ≤1s
12) Navigation Update Rate: RAW: 20Hz Max RTK: 8Hz Max
13) Cable Length: 27cm or 50cm
14) Antenna Connection Type: N/A
15) Working voltage:: 4.75V~5.25V
16) Current Consumption: ~250mA
17) Dimensions: Diameter: 80mm Height: 20mm
18) Weight: 123g
19) Operating Temperature: -20℃ to 85℃

–
