The Future Of Flying With The DJI Matrice 300 RTK!

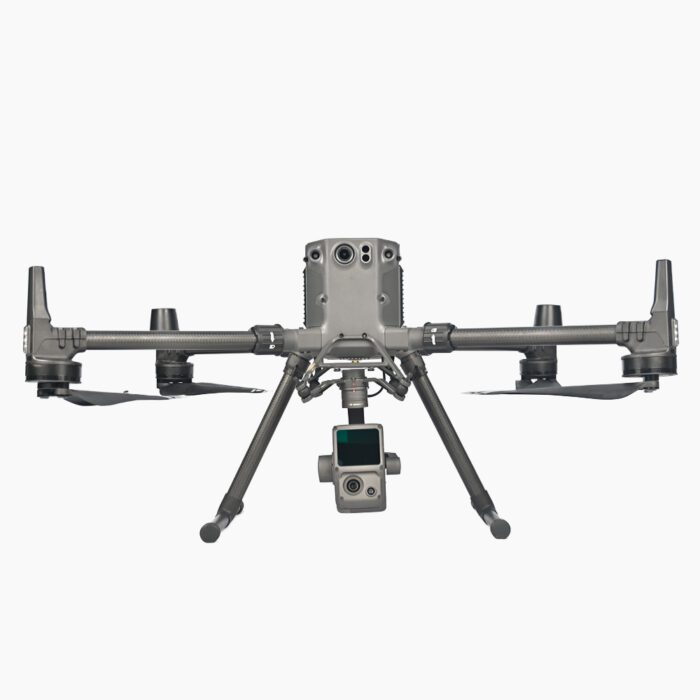

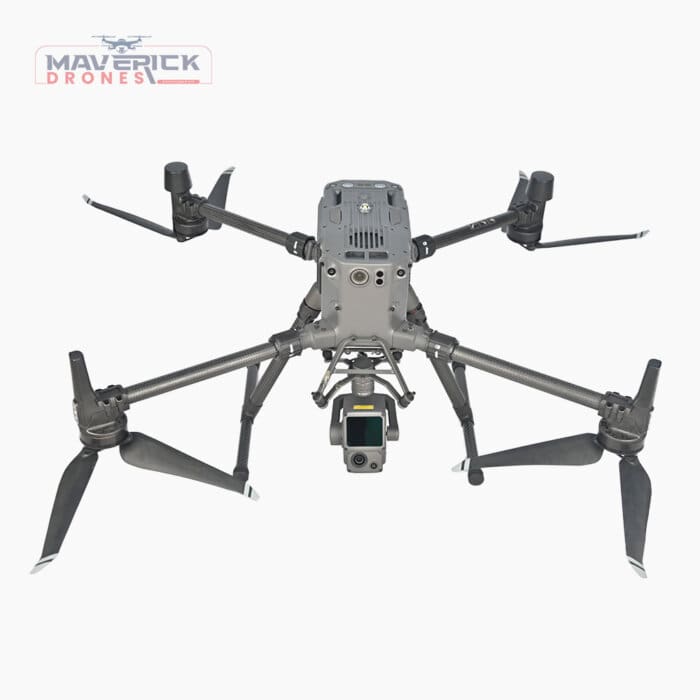

One of the most advanced drones is the DJI Enterprise Matrice 300 RTK. It has transformed many sectors, including emergency response, monitoring, and surveying. This adaptable aircraft combines outstanding performance with modern equipment. For professionals, the DJI Matrice 300 Series is a vital tool. We examine its remarkable DJI Matrice 300 RTK Accessories, features, applications, capabilities, and frequently asked questions below.
DJI Matrice 300 RTK Specs
DJI Enterprise Matrice 300 RTK Aircraft Dimensions
Unfolded (without propellers): 810 × 670 × 430 mm (L×W×H)
Folded (with propellers): 430 × 420 × 430 mm (L×W×H)
DJI Matrice Drone Diagonal Wheelbase: 895 mm
DJI Matrice 300 RTK Weight And Payload
Weight (with single downward gimbal):
Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
Single Gimbal Damper’s Max Payload: 930 g
DJI Matrice Drone Max Takeoff Weight: 9 kg
DJI Matrice300 RTK Frequency And Communication
DJI Matrice Drone Operating Frequency:
2.4000-2.4835 GHz
5.725-5.850 GHz
DJI M300 RTK EIRP:
2.4000-2.4835 GHz:
29.5 dBm (FCC)
18.5 dBm (CE)
18.5 dBm (SRRC)
18.5 dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC)
12.5 dBm (CE)
28.5 dBm (SRRC)
DJI Enterprise Matrice 300 RTK Flight Performance
DJI Matrice Drone Max Flight Time: 55 minutes
DJI M300 RTK Max Speed:
S mode: 23 m/s
P mode: 17 m/s
DJI M300 RTK Max Ascent Speed:
S mode: 6 m/s
P mode: 5 m/s
DJI M300 RTK Max Descent Speed (vertical):
S mode: 5 m/s
P mode: 4 m/s
Max Descent Speed (tilt): S mode: 7 m/s
DJI Matrice Drone Max Wind Resistance: 12 m/s
DJI M300 RTK Service Ceiling Above Sea Level:
5000 m (with 2110 propellers, takeoff weight ≤ 7 kg)
7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)
DJI Matrice300 RTK Accuracy And Stability
DJI M300 RTK Hovering Accuracy (P-mode with GPS):
Vertical:
±0.1 m (Vision System enabled)
±0.5 m (GPS enabled)
±0.1 m (DJI RTK enabled)
Horizontal:
±0.3 m (Vision System enabled)
±1.5 m (GPS enabled)
±0.1 m (DJI RTK enabled)
DJI Matrice Drone RTK Positioning Accuracy:
DJI M300 When DJI RTK Enabled And Fixed:
1 cm + 1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
DJI Matrice300 RTK Control And Operating Conditions
DJI M300 RTK Max Angular Velocity:
Pitch: 300°/s
Yaw: 100°/s
Max Pitch Angle: 30° (P-mode, Forward Vision System enabled: 25°)
DJI Matrice Drone Operating Temperature: -20°C to 50°C (-4°F to 122°F)
DJI Matrice300 RTK GNSS And Vision Systems
GNSS: GPS + GLONASS + BeiDou + Galileo
DJI Matrice Drone Ingress Protection Rating: IP45
DJI M300 RTK Obstacle Sensing Range:
Forward/Backward/Left/Right: 0.7-40 m
Upward/Downward: 0.6-30 m
DJI M300 RTK Field of View (FOV):
Forward/Backward/Downward: 65° (H), 50° (V)
Left/Right/Upward: 75° (H), 60° (V)
DJI Matrice 300 RTK Battery Information (DJI Matrice 300 RTK Accessories)
DJI M300 RTK Intelligent Flight Battery (TB60):
Capacity: 5935 mAh
Voltage: 52.8 V
Energy: 274 Wh
Net Weight: Approx. 1.35 kg
DJI M300 RTK Charging Time (BS60 Battery Station):
220V input: 60 minutes (fully charging two TB60 batteries)
110V input: 70 minutes (fully charging two TB60 batteries)
DJI M300 RTK External Battery (WB37):
Capacity: 4920 mAh
Voltage: 7.6 V
Energy: 37.39 Wh
Charging time: 70 minutes (15°C to 45°C)
DJI Matrice300 RTK Charging Station (DJI Matrice 300 RTK Accessories)
BS60 Intelligent Battery Station:
Dimensions: 501 × 403 × 252 mm
Net Weight: 8.37 kg
Max Input Power: 1070 W
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
Compatibility Of Zenmuse L1 With DJI Matrice 300 RTK
One of the most advanced LiDAR DJI Matrice 300 Payload is the ZENMUSE L1. The DJI Matrice 300 RTK Drone is completely compatible with it. Users can take advantage of high-precision mapping and surveying capabilities thanks to this. The Zenmuse L1's architecture effectively gathers intricate 3D data. This makes it an effective tool for a range of uses. These uses include infrastructure inspections, environmental monitoring, and topographic mapping.
When mounted on the DJI Matrice 300 Series, the L1 benefits from the drone's robust flight platform. Engineers optimize this platform for stability and performance. This synergy allows professionals to gather accurate spatial information rapidly. They can do this even in challenging environments. Additionally, the intuitive software interface simplifies data processing. It enables users to analyze and utilize their LiDAR data effectively. As a result, the combination of the DJI Matrice 300 RTK Drone and the Zenmuse L1 enhances operational workflows. It elevates the quality of deliverables across multiple industries.
Compatibility Of BS60 Battery Station With DJI Matrice300 RTK
Engineers designed the BS60 Intelligent Battery Station to charge the TB60 Intelligent Flight Battery. This battery powers the DJI Enterprise Matrice 300 RTK. This specialized charging station plays a critical role in optimizing battery management. It ensures that the station charges the batteries efficiently. The station keeps the batteries ready for use when needed.
One of the standout features of the BS60 allows it to charge many batteries. This capability significantly enhances operational productivity. With quick charging times, the BS60 minimizes downtime between flights. This allows operators to maximize their drone's capabilities throughout the day. Moreover, its built-in safety features guarantee safe battery charging. These features extend the batteries' lifespan and reliability in the field.
By integrating the BS60 Intelligent Battery Station into their workflow, users of the DJI Matrice 300 RTK Drone can achieve extended operational efficiency. This makes the station an essential component for professional drone applications.
Enhanced Flight Performance
The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.
55min Max Flight Time • 7m/s Max Descend Speed • 7000m Service Ceiling • 12m/s Wind Resistance • 23m/s Max SpeedMultiple Payload Configurations
Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.
Single Downward Gimbal • Single Upward Gimbal x Single Downward Gimbal • Single Upward Gimbal x Dual Downward Gimbals
How The DJI Matrice 300 RTK Enhances Work Across Various Fields
The DJI Matrice 300 RTK Drone is a versatile and powerful drone. It significantly enhances operations across multiple industries. Its advanced technology and robust design make it ideal for a wide range of applications. These applications include surveying, surveillance, infrastructure inspection, and emergency response. Here’s a closer look at how this drone transforms work in these fields:
- Surveying: In the field of surveying, the DJI Matrice 300 Series excels by providing high-precision capabilities. The DJI RTK positioning system allows for centimeter-level accuracy. This accuracy is crucial for creating detailed topographic maps and models. The DJI Matrice 300 RTK Drone compatibility with LiDAR payloads like the Zenmuse L1 further enhances surveying capabilities. This compatibility enables professionals to gather comprehensive 3D data efficiently. As a result, professionals reduce survey time and improve accuracy. This makes the DJI M300 RTK an invaluable tool for geospatial professionals and land surveyors.
- Surveillance: For surveillance applications, the DJI Matrice 300 RTK Drone offers enhanced situational awareness. It does this through its high-resolution cameras and thermal imaging capabilities. The DJI M300 RTK extended flight time of up to 55 minutes allows operators to cover large areas without interruption. This makes it ideal for monitoring critical infrastructure, public safety, and wildlife. The DJI M300 RTK advanced obstacle avoidance system ensures safe navigation in complex environments. The drone provides real-time video feeds that aid in decision-making and threat assessment.
- Infrastructure Inspection: When it comes to infrastructure inspection, the DJI Matrice 300 RTK Drone is a game-changer. It can efficiently inspect power lines, bridges, buildings, and other structures. This eliminates the need for scaffolding or cranes, reducing costs and improving safety. The DJI M300 RTK can carry various payloads, including zoom and thermal cameras. This enables inspectors to detect issues such as heat loss, structural damage, or leaks from a safe distance. This capability significantly enhances maintenance planning. It also helps prevent potential hazards.
- Emergency Response: The DJI Matrice 300 RTK Drone plays a vital role in emergency response scenarios. This includes search and rescue operations and disaster assessment. The DJI M300 RTK ability to operate in adverse weather conditions is a significant advantage. The drone has a long flight time and high payload capacity. Combined, these features enable responders to quickly assess situations from the air. The DJI M300 RTK can relay critical information to ground teams in real-time. This improves response times and enhances the safety of personnel involved in rescue missions.
Conclusion
The epitome of drone technology is the DJI Matrice 300 RTK. It significantly transforms operations in various sectors, including surveying, surveillance, infrastructure inspection, and emergency response. Its advanced features include DJI RTK positioning for unparalleled accuracy and extensive flight time. It is also compatible with high-performance payloads like the Zenmuse L1. These qualities make it an invaluable asset for professionals. Professionals seek to enhance their workflow and data collection capabilities. The BS60 Intelligent Battery Station further amplifies its effectiveness. It ensures efficient battery management and quick turnaround times.
As industries continue to embrace aerial technology, the DJI Matrice 300 RTK Drone meets the demands of today. It establishes the benchmark for the future as well. With the help of this drone, users may increase operational accuracy and efficiency to new heights. It is reliable for creating intricate 3D maps. It is dependable for carrying out exhaustive checks as well. For both duties, the DJI Matrice 300 RTK Drone is a reliable collaborator. It excels in executing critical emergency missions and driving innovation and operational excellence.
The DJI Matrice 300 Price slaps you, no matter where you try to buy it! But to get an affordable and promising DJI Matrice 300 RTK Price, don't miss out on Mavdrones. For the best drones and drone parts in India, consider reaching out to Maverick Drones and Technologies Private Limited. Customers highly trust this company for offering top-quality products at fair rates. Maverick Drones has excellent reviews and a strong reputation for customer satisfaction. They ensure you receive the best in drone technology. Their products meet your operational needs.
CONTACT US NOW TO LOCK IN THE LOWEST DJI M300 PRICE AVAILABLE!
FAQ’s on DJI Matrice 300 RTK
The DJI M300 RTK has a transmission range of up to 15 km in FCC regions and 8 km in CE/MIC regions.
The maximum DJI Matrice 300 Payload 930 g, with a total takeoff weight of 9 kg.
Yes, the DJI Matrice 300 RTK Drone has an IP45 rating and can handle light rain, but users should keep it away from heavy precipitation.
The DJI M300 RTK offers a maximum flight time of up to 55 minutes under optimal conditions.
The DJI M300 RTK compatible with gimbals such as the Zenmuse XT2, Z30, H20 series, DJI P1, and DJI L1.
While operators can fly the DJI M300 RTK indoors, they must be cautious of obstacles and GPS signal interference due to its size.
The DJI RTK feature enhances positioning accuracy to 1 cm + 1 ppm horizontally and 1.5 cm + 1 ppm vertically when fixed.
The DJI M300 RTK can operate in temperatures ranging from -20°C to 50°C (-4°F to 122°F).
Yes, the DJI M300 RTK is well-suited for emergency response due to its long flight time and high payload capacity.
The DJI M300 RTK can withstand wind speeds of up to 12 m/s.
The DJI M300 RTK can reach a maximum speed of 23 m/s in S mode and 17 m/s in P mode.
The DJI M300 RTK features an advanced obstacle sensing system with a range of 0.7 to 40 m in various directions.
The BS60 Battery Station can charge up to eight TB60 Intelligent Flight Batteries simultaneously.
The charging time is about 60 minutes for two TB60 batteries from 0% to 100% at 220V input.
Yes, the DJI M300 RTK supports multiple configurations including single, dual, and upward gimbals.
The vertical hovering accuracy is ±0.1 m with DJI RTK enabled, while horizontal accuracy is ±0.1 m.
The DJI M300 RTK weighs approximately 3.6 kg without any batteries installed.
The DJI M300 RTK uses the TB60 Intelligent Flight Battery, which is a LiPo 12S battery.
The DJI M300 RTK features a FPV camera with a resolution of 960p and a field of view of 145°.
DJI Matrice 300 RTK In The Box
Item | Quantity |
Aircraft Body | x1 |
DJI Smart Controller Enterprise | x1 |
USB-C Cable | x1 |
2110 Propeller (CW) | x2 |
2110 Propeller (CCW) | x2 |
Landing Gear | x2 |
Spare Stick Cover (pair) | x1 |
Spare Propeller Holder | x2 |
Spare Gimbal Damper | x4 |
USB Cable (with Double A Ports) | x1 |
Vision System Calibration Plate | x1 |
Carrying Case | x1 |
Smart Controller Lanyard | x1 |
Rubber Port Cover (Set) | x1 |
MScrews and Tools | x1 |
Power Lead | x1 |
